基于氧化磷酸化相关基因的三阴性乳腺癌预后模型构建与验证
作者:
通讯作者:
作者单位:

1新疆医科大学第二附属医院 普通外科,新疆 乌鲁木齐 830063;2中南大学湘雅医院 乳腺外科, 湖南 长沙 410008;3中南大学湘雅医院 乳腺癌临床研究中心,湖南 长沙 410008;4中南大学湘雅医院 分子放射肿瘤学湖南省重点实验室,湖南 长沙 410008

作者简介:

夏伟智,新疆医科大学第二附属医院硕士研究生,主要从事乳腺癌方面的研究。

基金项目:

湖南省科技创新计划资助(2022RC1019);湖南省科技创新计划资助(2022SK2041);吴阶平医学基金会科研专项资助(320.6750.2025-20-4);湖南省自然科学基金项目资助(2023JJ40986)。


Construction and validation of an oxidative phosphorylation-related gene prognostic model in triple-negative breast cancer
Author:
Affiliation:

1Department of General Surgery, the Second Affiliated Hospital of Xinjiang Medical University, Urumqi 830063, China;2Department of Breast Surgery, Central South University, Changsha 410008, China;3Clinical Research Center for Breast Cancer , Xiangya Hospital, Central South University, Changsha 410008, China;4Hunan Provincial Key Laboratory of Molecular Radiation Oncology, Xiangya Hospital, Central South University, Changsha 410008, China

Fund Project:

undefined

  • 摘要
  • |
  • 图/表
  • |
  • 访问统计
  • |
  • 参考文献
  • |
  • 相似文献
  • |
  • 引证文献
  • |
  • 资源附件
  • |
  • 音频文件
  • |
  • 视频文件
    摘要:

    背景与目的 三阴性乳腺癌(TNBC)具有高度侵袭性和较差预后,代谢重编程尤其是氧化磷酸化异常在其进展中发挥重要作用。本研究基于多组学数据,筛选TNBC氧化磷酸化相关风险基因,并构建预后预测模型。方法 基于Human Protein Atlas(HPA)数据库筛选与乳腺癌不良预后相关的基因,结合GSE176078单细胞测序数据及COSMIC细胞系数据,筛选TNBC代谢相关的核心基因。采用TCGA-BRCA Basal-like队列构建预后模型,通过单因素Cox、LASSO及多因素Cox回归筛选独立预后因子,并建立风险评分模型及列线图模型。利用ICGC-BRCA-US队列进行外部验证。进一步采用ESTIMATE及CIBERSORT算法分析风险评分与肿瘤免疫微环境的相关性。结果 共筛选获得63个与乳腺癌不良预后相关的代谢基因,其功能主要富集于氧化磷酸化及ATP能量代谢通路。其中16个基因在TNBC肿瘤细胞中明显高表达,并主要参与电子呼吸传递链过程。最终筛选获得脱氧胞苷三磷酸焦磷酸酶1(dCTP pyrophosphatase 1,DCTPP1)、细胞色素C1(cytochrome C1,CYC1)两个独立预后风险基因,并构建风险评分模型:高风险组患者总体生存期明显低于低风险组(P=0.006)。训练队列中,模型预测1、3、5、10年总生存期的AUC分别为0.664、0.655、0.662和0.775,一致性指数为0.634。联合年龄及M分期建立的列线图模型一致性指数提高至0.726。ICGC队列验证结果显示模型仍具有较稳定的预测能力。免疫浸润分析显示,风险评分与Immune score、Stromal score及ESTIMATE score均呈负相关,而与肿瘤纯度呈正相关;高风险组CD8+ T细胞浸润显著降低。结论 本研究基于多组学数据成功构建并验证了TNBC氧化磷酸化相关预后模型。DCTPP1和CYC1可能是影响TNBC不良预后的关键代谢基因,并有望成为治疗靶点。该模型可为TNBC风险分层及个体化治疗提供参考依据。

    Abstract:

    Background and Aims Triple-negative breast cancer (TNBC) is characterized by strong invasiveness and poor prognosis. Metabolic reprogramming, particularly oxidative phosphorylation (OXPHOS) dysregulation, plays a critical role in TNBC progression. This study aimed to identify OXPHOS-related prognostic genes and construct a prognostic prediction model for TNBC based on multi-omics data.Methods Genes associated with poor prognosis in breast cancer were screened from the Human Protein Atlas database. Combined with GSE176078 single-cell RNA sequencing data and COSMIC cell line data, TNBC-related metabolic genes were identified. A prognostic model was established using the TCGA-BRCA Basal-like cohort through univariate Cox, LASSO, and multivariate Cox regression analyses. A nomogram integrating clinicopathological variables was subsequently constructed. External validation was performed using the ICGC-BRCA-US cohort. In addition, the ESTIMATE and CIBERSORT algorithms were applied to investigate the relationship between the risk score and the tumor immune microenvironment.Results A total of 63 metabolism-related genes associated with poor prognosis in breast cancer were identified, mainly enriched in oxidative phosphorylation and ATP metabolic pathways. Among them, 16 genes were significantly overexpressed in TNBC tumor cells and were primarily involved in the electron transport chain process. The dCTP pyrophosphatase 1 (DCTPP1) and cytochrome C1 (CYC1) were ultimately identified as independent prognostic risk genes and used to construct the risk model. Patients in the high-risk group exhibited significantly worse overall survival than those in the low-risk group (P=0.006). The AUC values for predicting 1-, 3-, 5-, and 10-year overall survival were 0.664, 0.655, 0.662, and 0.775, respectively, with a C-index of 0.634. The nomogram incorporating age and M stage achieved a C-index of 0.726. External validation using the ICGC cohort confirmed the robustness of the model. Immune infiltration analysis demonstrated that the risk score was negatively correlated with Immune score, Stromal score, and ESTIMATE score, but positively correlated with tumor purity. Moreover, CD8+ T-cell infiltration was significantly reduced in the high-risk group.Conclusion This study successfully developed and validated an OXPHOS-related prognostic model for TNBC using multi-omics data. DCTPP1 and CYC1 may serve as key metabolic drivers of poor prognosis and therapeutic targets in TNBC. This model may provide a useful tool for prognostic stratification and individualized treatment of TNBC patients.

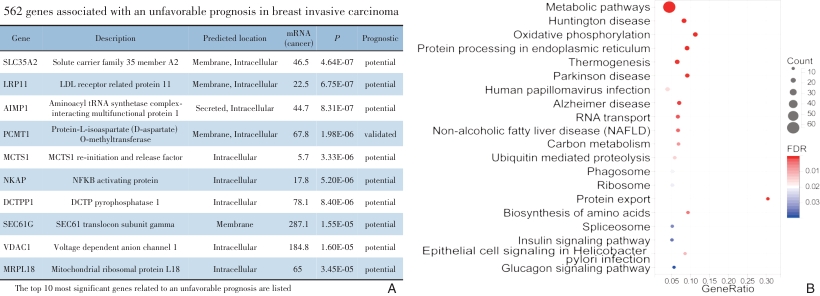

    图1 乳腺癌不良预后相关风险基因筛选 A:通过HPA数据库筛选出乳腺癌不良预后风险基因集(显示前10位基因);B:预后风险基因集的KEGG功能富集分析Fig.1 Screening of breast cancer risk genes associated with poor prognosis A: Screening of breast cancer poor-prognosis risk gene sets using the HPA database (top 10 genes shown); B: KEGG functional enrichment analysis of the prognostic risk gene set

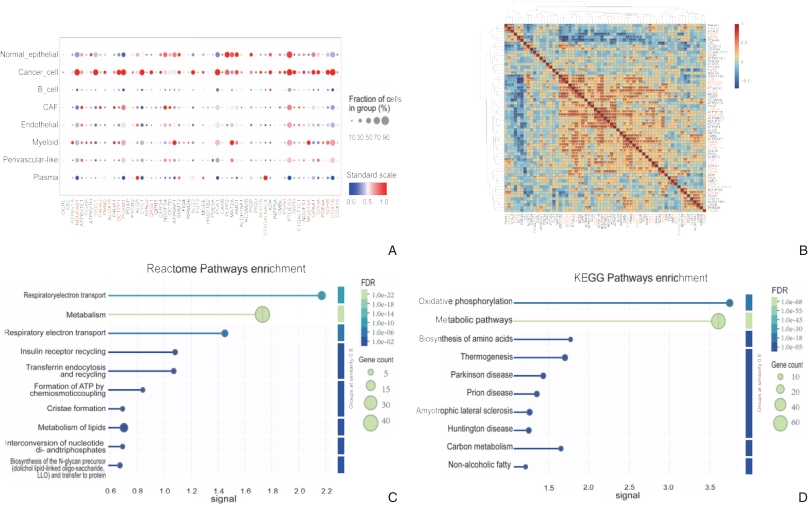

    图2 乳腺癌代谢相关的风险基因集的特征描述 A:利用scCancer单细胞数据分析基因集的表达分布特点;B:用热图展示基因集表达的相关性;C-D:与乳腺癌代谢相关的风险基因集的PPI富集分析Fig.2 Characterization of metabolism-related risk genes in breast cancer A: Expression distribution of the gene set based on scCancer single-cell data analysis; B: Correlation heatmap of the gene set expression; C-D: PPI enrichment analysis of metabolism-related risk genes in breast cancer

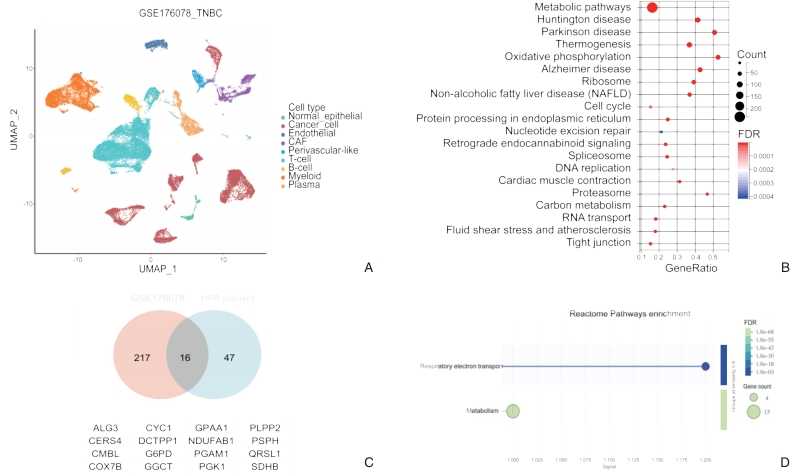

    图3 TNBC代谢相关的风险基因筛选 A:GSE176078 TNBC单细胞数据集获取高表达基因;B:筛选与代谢通路相关的基因;C:与63 个乳腺癌风险基因的交集;D:交集基因的生物学功能Fig.3 Screening of TNBC metabolism-related risk genes A: Identification of highly expressed genes in the GSE176078 TNBC single-cell dataset; B: Screening of metabolism pathway-related genes; C: Intersection with 63 breast cancer risk genes; D: Biological functions of intersecting genes

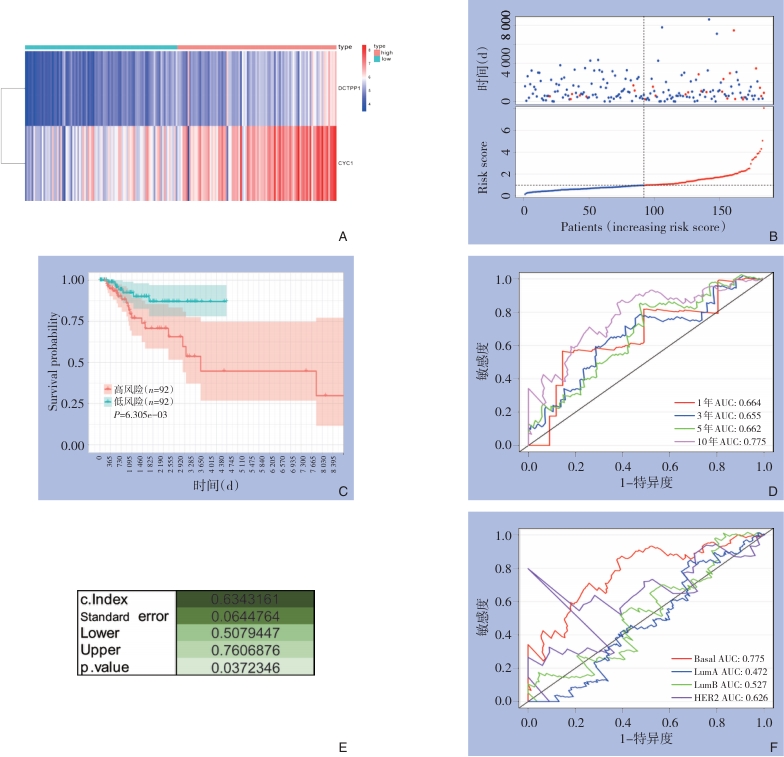

    图4 基于TNBC代谢相关基因的风险模型构建 A:TCGA-BRCA Basal队列风险评分分组下的基因表达热图;B:风险评分分组与OS的散点图;C:Kaplan-Meier OS曲线;D:时间依赖性ROC曲线,展示模型对不同OS预测能力;E:模型的一致性指数的结果;F:不同亚型分层的ROC分析,通过不同分子亚型10年OS率的ROC曲线分析,对比模型在不同亚型的预测能力Fig.4 Construction of the risk model based on TNBC metabolism-related genes A: Heatmap of gene expression in different risk groups of the TCGA-BRCA Basal cohort; B: Scatter plot of risk scores and OS; C: Kaplan-Meier OS curves; D: Time-dependent ROC curves showing predictive performance for OS; E: C-index of the model; F: Subtype-stratified ROC analysis comparing predictive performance across different molecular subtypes based on 10-year OS

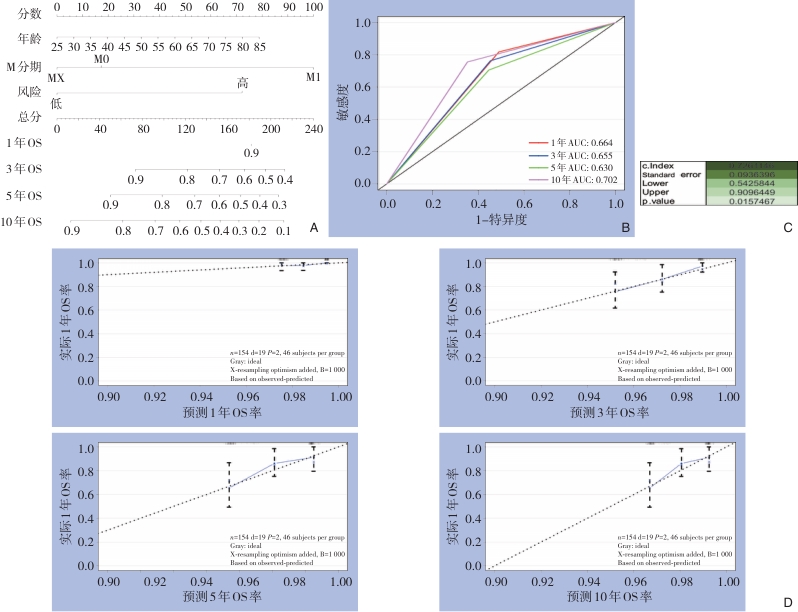

    图5 列线图模型构建与评价 A:风险评分+年龄+M分期的构建了综合预后列线图;B:用ROC曲线展示模型的不同OS的预测能力;C:模型一致性指数的结果;D:列线图1、3、5、10年的校准图Fig.5 Construction and evaluation of the nomogram model A: Comprehensive prognostic nomogram integrating risk score, age, and M stage; B: ROC curves showing predictive performance for different overall survival outcomes; C: C-index of the model; D: Calibration curves for 1-, 3-, 5-, and 10-year OS
    图6 利用ICGC队列验证风险模型并探索风险机制 A:风险评分与OS的生存状态散点图;B:Kaplan-Meier OS曲线;C:时间依赖性ROC曲线;D:该模型的一致性指数的结果;E:DCTPP1与CYC1基因在正常乳腺组织和乳腺癌中的表达;F:风险评分与肿瘤微环境评分的相关性分析;G:高低风险组间22种免疫细胞浸润比例的比较(CIBERSORT算法)Fig.6 Validation of the risk model using the ICGC cohort and exploration of underlying mechanisms A: Scatter plot of risk scores and survival status; B: Kaplan-Meier OS curves; C: Time-dependent ROC curves; D: C-index of the model; E: Expression of DCTPP 1 and CYC1 in normal breast tissues and breast cancer tissues; F: Correlation analysis between risk score and tumor microenvironment scores; G: Comparison of infiltration proportions of 22 immune cell subtypes between high- and low-risk groups based on the CIBERSORT algorithm
    图1 乳腺癌不良预后相关风险基因筛选 A:通过HPA数据库筛选出乳腺癌不良预后风险基因集(显示前10位基因);B:预后风险基因集的KEGG功能富集分析Fig.1 Screening of breast cancer risk genes associated with poor prognosis A: Screening of breast cancer poor-prognosis risk gene sets using the HPA database (top 10 genes shown); B: KEGG functional enrichment analysis of the prognostic risk gene set
    图2 乳腺癌代谢相关风险基因集的特征描述 A:利用scCancer单细胞数据分析基因集的表达分布特点;B:用热图展示基因集表达的相关性;C-D:与乳腺癌代谢相关风险基因集的PPI富集分析Fig.2 Characterization of metabolism-related risk genes in breast cancer A: Expression distribution of the gene set based on scCancer single-cell data analysis; B: Correlation heatmap of the gene set expression; C-D: PPI enrichment analysis of metabolism-related risk genes in breast cancer
    图3 TNBC代谢相关的风险基因筛选 A:GSE176078 TNBC单细胞数据集获取高表达基因;B:筛选与代谢通路相关的基因;C:与63 个乳腺癌风险基因的交集;D:交集基因的生物学功能Fig.3 Screening of TNBC metabolism-related risk genes A: Identification of highly expressed genes in GSE176078 TNBC single-cell dataset; B: Screening of metabolism pathway-related genes; C: Intersection with 63 breast cancer risk genes; D: Biological functions of intersecting genes
    图4 基于TNBC代谢相关基因的风险模型构建 A:TCGA-BRCA Basal队列风险评分分组下的基因表达热图;B:风险评分分组与OS的散点图;C:OS的Kaplan-Meier曲线;D:时间依赖性ROC曲线,展示模型对不同OS预测能力;E:模型的一致性指数结果;F:不同亚型分层的ROC分析,通过不同分子亚型10年OS率的ROC曲线分析,对比模型在不同亚型中的预测能力Fig.4 Construction of the risk model based on TNBC metabolism-related genes A: Heatmap of gene expression in different risk groups of the TCGA-BRCA Basal cohort; B: Scatter plot of risk scores and OS; C: Kaplan-Meier OS curves; D: Time-dependent ROC curves showing predictive performance for OS; E: C-index of the model; F: Subtype-stratified ROC analysis comparing predictive performance across different molecular subtypes based on 10-year OS
    图5 列线图模型构建与评价 A:风险评分+年龄+M分期的综合预后列线图;B:用ROC曲线展示模型不同OS的预测能力;C:模型一致性指数的结果;D:列线图1、3、5、10年的校准图Fig.5 Construction and evaluation of the nomogram model A: Comprehensive prognostic nomogram integrating risk score, age, and M stage; B: ROC curves showing predictive performance for different overall survival outcomes; C: C-index of the model; D: Calibration curves for 1-, 3-, 5-, and 10-year OS
    图6 利用ICGC队列验证风险模型并探索风险机制 A:风险评分与OS的生存状态散点图;B:OS的Kaplan-Meier曲线;C:时间依赖性ROC曲线;D:该模型的一致性指数的结果;E:DCTPP1与CYC1基因在正常乳腺组织和乳腺癌中的表达;F:风险评分与肿瘤微环境评分的相关性分析;G:高低风险组间22种免疫细胞浸润比例的比较(CIBERSORT算法)Fig.6 Validation of the risk model using the ICGC cohort and exploration of underlying mechanisms A: Scatter plot of risk scores and survival status; B: Kaplan-Meier OS curves; C: Time-dependent ROC curves; D: C-index of the model; E: Expression of DCTPP 1 and CYC1 in normal breast tissues and breast cancer tissues; F: Correlation analysis between risk score and tumor microenvironment scores; G: Comparison of infiltration proportions of 22 immune cell subtypes between high- and low-risk groups based on the CIBERSORT algorithm
    参考文献
    相似文献
    引证文献
引用本文

夏伟智,曾文静,罗沙阳,黄隽,荣卓献,王守满.基于氧化磷酸化相关基因的三阴性乳腺癌预后模型构建与验证[J].中国普通外科杂志,2026,35(5):907-918.
DOI:10.7659/j. issn.1005-6947.260035
